Description
Technical Data:

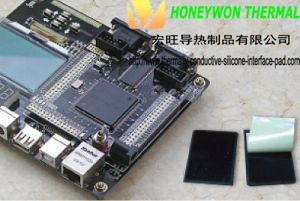

Thermally Conductive Double Adhesive Tape: HWT-180
Product Features:
Thermal conductivity: 1.8W/m-K
Available in thickness 0.004inch(0.10mm), 0.06inch(0.152mm), 0.008inch(0.2mm)
Excellent adhesive property
Soft and highly compliant
HWT180 is a excellent thermally conductive adhesive tape to provide a preferential heat transfer path between heat components and heat sink or other cooling devices; this tape offer excellent adhesive performance with good wetting and good electrical insulation properties.
Product Applications:
LED TV and LED monitor
Memory modules
LED solid state lighting
Computer and peripherals
High power IC chip
Handheld electronics
Heat sink thermal model
Telecommunication hardware
.
Configurations Available and Options:
Roll form (1250x50M) and custom die-cut parts
Product description:
|
Typical Properties of HWT180 |
||||
|
Properties |
Imperial Value |
Metric Value |
Test Method |
|
|
Reinforcement Carrier |
NA |
NA |
--- |
|
|
Color |
White |
White |
Visual |
|
|
Thickness Range (inch/mm) |
0.004”~0.008” |
0.1~0.2 |
ASTM D374 |
|
|
Outgassing TML (Post Cured) |
<1.0% |
<1.0% |
ASTM E595 |
|
|
Continuous Use Temp (F)/(C) |
-22 ~ 302F |
-30 ~150C |
|
|
|
Dielectric Breakdown Voltage 50mm probe |
80 VAC/mil |
80 VAC/mil |
ASTM D149 |
|
|
UL Flammability Rating |
V0 |
V0 |
UL94 |
|
|
Rohs Compliant |
Yes |
Yes |
SGS |
|
|
Shelf life, year from date of production |
1 |
1 |
|
|
|
Thermal Conductivity (w/m-k) |
1.8 |
1.8 |
ASTM D5470 |
|
|
Peeling Adhesion |
25C |
80C |
150C |
PSCT-1 |
|
2450g/2.5cm |
650g/2.5mm |
320g/2.5mm |
||
|
Static Shear Test of Holding |
25C |
80C |
150C |
PSCT-7 |
|
1440g/2.5cm |
1250g/2.5cm |
1000g/2.5cm |
||
