Transparent ITO film heaters,Transparent ITO heating membrane

Description

Transparent ITO film heaters,Transparent ITO heating membrane,Transparent Film Heaters,Transparent Heating FilmTransparent ITO Heating Film Membrane,Transparent ITO Film Membrane Heaters,Transparent Heaters Transparent Heating Film Transparent Film Heaters Transparent Heating Membrane Transparent Membrane Heaters, Transparent ITO heaters, ITO transparent heating film , Transparent ITO film heaters,Transparent ITO heating membrane,Transparent CCTV Film Heaters,Transparent Helmet Film Heaters.

Specification:

1. Material: Transparent PET film or Transparent tempered glass

2. Maximum dimension: 406*356MM

3. The thickness of transparent PET film: 0.1mm, 0.125mm, 0.15mm,0.175mm various as per the electrical resistance of the heating element.

The thickness of transparent tempered glass: 0.55mm, 0.75mm, 1mm,8~5mm (custom is optional)

4. Haze: <2%, Adhesion: 100/100, roll-up: <=10mm

5. The eveness of the surface resistance:<7%

6. Thermal contraction: MD≤1.3，TD≤1.0

7. Thermal stability:

High temperature: 80C,120hr ≤1.3

Low temperature: -40C,120hr ≤1.3

Heat circulation: -30C—80C ≤1.3

Heat/Humidity: 60C  90% RH,120hr ≤1.3

9. Temperature range: 0~120C

10. Voltage: 0~380V, Vac and Vdc are optional

11. Square resistance: 6~150ohm

12. Dielectricity: 2000Vac/1 minute

13. Insulation: >100M ohm

14. Leakage current:<0.25mA at humidity of 0~80%

15. Life span: >10000 hours

16. Transmissivity: 85%,

17. Shape: Any shape is possible

18. Application:

A: On Helmet for construction, motocycle, Outdoor CCTV, Camera for anti-fog

B: On outdoor LCD display,LED display,outdoor glass

C: On outdoor meter,portable computer,DVD,optical len,glasses, LCD panel,anti-fog windowetc.

19. Custom is welcome here with your drawing or requestion,please call for any inquiry or question: 86-15360134400 or skype: firefly197915

Transparent Film Heaters by pictures show:

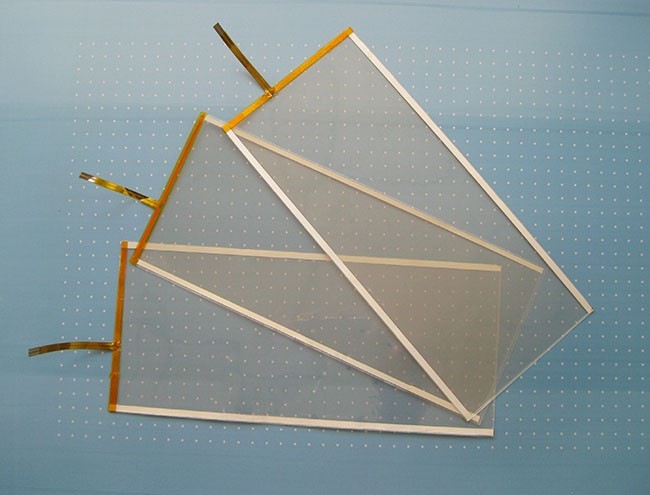

Transparent Heating film Transparent film Heaters                                   Transparent Film Heaters Transparent Heating Membrane

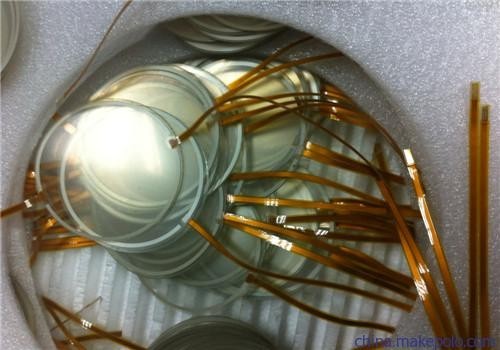

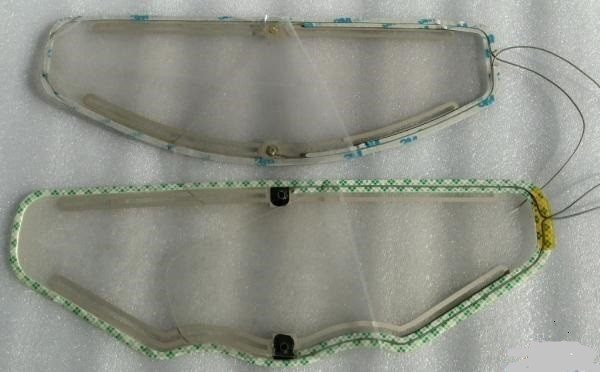

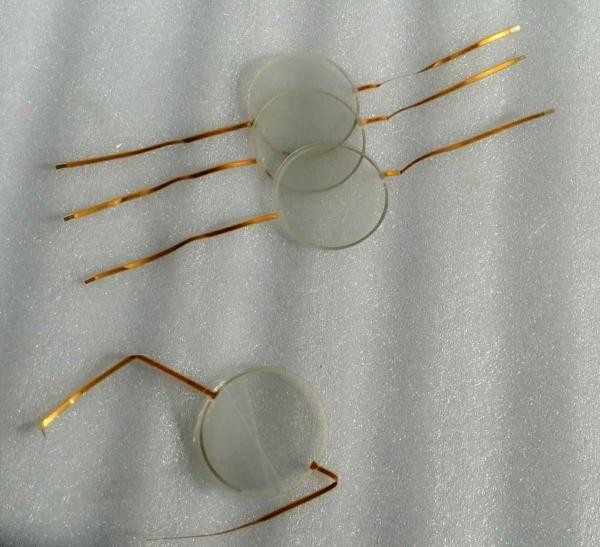

Round Circular Transparent Heaters                                                              Transparent Helmet Film Heaters

ITO Transparent Heaters Transparent ITO Heating Film                                                 Transparent Membrane Heaters
