Technical Data:

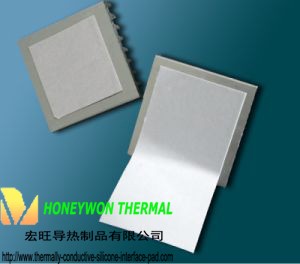

Thermally Conductive Double Adhesive Tape: HWT-150
Thermal conductivity: 1.5W/m-K
Available in thickness 0.005inch(0.127mm), 0.01inch(0.254mm)
Excellent adhesive property
Highly compliant and thermal performance
HWT150 double sided adhesive tape provide an effective heat transfer path between heat components and heat sink or other cooling devices. This tape consists of a high bond strength pressure-sensitive adhesive with an expanded aluminum carrier layer, have excellent thermal performance and bonding properties.
Product Applications:
Memory modules
LED lighting and LED TV
Note book and tablet PC
Heat sink thermal model
Automotive electronics
Handheld electronics
Telecommunication hardware
.
Configurations Available and Options:
Roll form (1000x50M) and custom custom die-cut parts
Product description:
|
Typical Properties of HWT150 |
||||
|
Properties |
Imperial Value |
Metric Value |
Test Method |
|
|
Reinforcement Carrier |
Aluminum |
Aluminum |
--- |
|
|
Color |
Grey |
Grey |
Visual |
|
|
Thickness Range (inch/mm) |
0.005”~0.01” |
0.127~0.254 |
ASTM D374 |
|
|
Outgassing TML (Post Cured) |
<1.0% |
<1.0% |
ASTM E595 |
|
|
Continuous Use Temp (F)/(C) |
-22 ~ 302F |
-30 ~150C |
|
|
|
Dielectric Breakdown Voltage 50mm probe |
50 VAC/mil |
50 VAC/mil |
ASTM D149 |
|
|
UL Flammability Rating |
V0 |
V0 |
UL94 |
|
|
Rohs Compliant |
Yes |
Yes |
SGS |
|
|
Shelf life, year from date of production |
1 |
1 |
|
|
|
Thermal Conductivity (w/m-k) |
1.5 |
1.5 |
ASTM D5470 |
|
|
Peeling Adhesion |
25C |
80C |
150C |
PSCT-1 |
|
1750g/2.5cm |
450g/2.5mm |
230g/2.5mm |
||
|
Static Shear Test of Holding |
25C |
80C |
150C |
PSCT-7 |
|
1100g/2.5cm |
1000g/2.5cm |
800g/2.5cm |
||
