  • Thermally Conductive Grease Compound: HWG-300

Thermally Conductive Grease Compound: HWG-300

  • 产品型号:HWG-300
  • Thermally Conductive Grease Compound
  • Thermal Conductive Silicone Grease Paste
  • Silicone Interface Cooling Grease Paste
  • Silicone Interface Pad Mat Sheets Cooler
  • 点击询价 下载附件

    产品描述

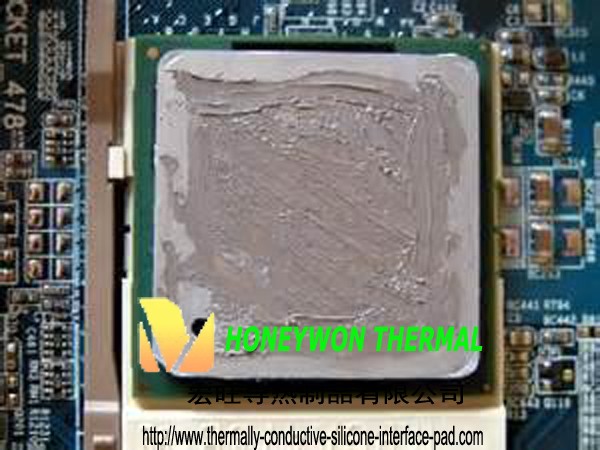

    Thermally Conductive Grease Compound,CPU Chip Thermal Conductive Heat transfer Cooling Grease Paste Compound Cooler,Thermal Conductive Silicone Grease Paste,  Silicone Interface Cooling Grease Paste, Silicone Interface Pad Mat Sheets Cooler,Heat Transfer silicone Grease Paste,closeup-of-cpu-chip-white-thermal-grease,Thermally Conductive Silicone Interface Grease Paste,thermally conductive silicone gap Grease Paste,Heat Transfer Silicone Sink Grease Paste,Thermally Conductive Grease Compound: HWG300





    Technical Data:

    Product  Features:

    High thermal conductivity of 3.0 w/(m·k)
    -High conformability and cost effective
    -Long reliability; Lowest thermal resistance
    -Designed for easy application

    Product  Applications:

    It is usually used as the thermal conductive medium in electronic components to reduce the heat resistant of the contact surface, consequently reduce the temperature of the electric component.

    HWG300 therml grease compound is a thermally conductive grease compound designed for:

    - Between CPU,high performance GPU,IGBT and heatsink
    - Telecom device, Military,Motol control Led lighting etc
    - Cooling Module, memory module, in all applications where lower thermal resistance is required


    Product description:

    Typical Properties of HWG300

    Properties

    Units

    HWG300

    Test Method

    Color

    ---

    Gray / pasty

    Visual

    Density

    g/ml

    2.85±0.1

    ASTM D374

    Continuous Use Temp

    ℃

    -60 to 200

    EN344

    Breakdown Voltage

    Kv/mm

    5

    ASTM D149

    Volume Impedance

    ohm-cm

    1.7*1016

    ASTM D257

    Dielectric Constant

    1KHz

    0.4

    ASTM D150

    Flame Rating

    ---

    V0

    UL 94

    Thermal Conductivity

    W/m.k

    3.0

    ASTM D5470

    Thermal Resistance @50psi

    ℃-in2/W

    0.06

    ASTM D5470

    UL, RoHS

    ---

    Compliance

    ---

    REACH

    ---

    Pending

    ---

    Standard Container:

    1 KG / Container; 2KG / Container; Special spec. available

    Thermal Resistance VS Contact pressure:



    联系我们





    相关产品

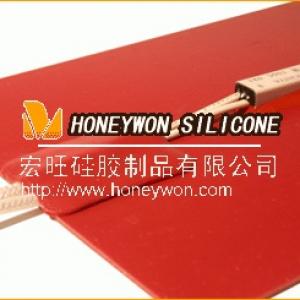

    silicone flexible heaters
