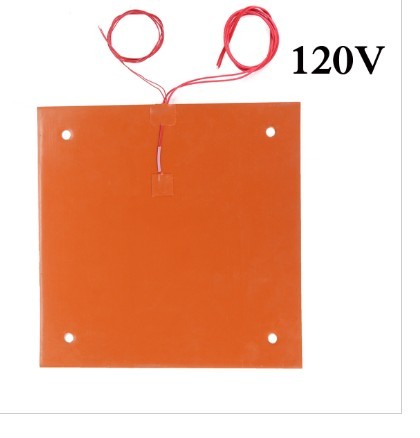

3D printer Cr-10 Ender Printer Silicone Hotbed

Product Item：HW-SRH-3DH

3D printer’s silicone rubber hotbed

3D printer’s silicone rubber heat Pad

3D printer’s silicone rubber heat mat

3D printer’s silicone rubber hot plate

Description

3D printer silicone rubber heat pad heat mat 3D printer’s silicone rubber hotbed or heat pad heating pad heat mat heating mat hot plate heating blanket is made of high temperature resistant, strong dielectric insulation silicone rubber with much even heat, very good fir 3D printer’s ink melt by various temperature under optional wattage and dimension.It can be pasted onto the aluminum plate of 3D printers with 3M PSA or fixed by screw with preformed holes or both. The NTC 100K 3950 thermistor onto the 3D printers gives it capability of temperature sense and temperature controlling by the thermostat connected. The 3D printer’s silicone rubber heat pad is flexible, can be used onto curving surface.

Features:

Color: Brick or orange or black

Material: Fiberglass fabric coated silicone rubber

Thickness:1.5MM

Temperature sensor: NTC 100K 3950 thermistor

Back PSA adhesive: 3M 468 200MP

Dimension: Optional size:100X100MM, 120X120MM,150X150MM,200X200MM, 250X250MM

300X300MM,300x400MM,200X300MM,310X310MM, 400X400MM

450X450MM,400X500MM,500X500MM,800X800MM

Any custom size is also available.

Voltage: 5V, 12V , 24V, 36V, 110V, 115V, 120V, 220V, 230V, 240V, 380V

Wattage:20W 50W 100W 150W 200W 300W 400W 500W 800W 1000W 1500W 2000W etc.

Technical  Parameters:
1 ）Maximum  temperature  resistance  of  insulator：250℃
2 ）Maximum  operation  temperature： 200℃
3 ）Insulation  Resistance：≥500  MΩ/DC  1000V
4 ）Breakdown  Voltage：≥  AC1500v/5S
5 ）Capacity  Tolerance：±5%
6 ）Temperature  range:  -60℃—250℃  continuous  heating;  Heating  element:  Available  with  either
etched  foil  or  wire-wound  elements:
