  • Abnormal Shape PET film pad mat sheet blanket heaters
  • Abnormal Shape PET film pad mat sheet blanket heaters
  • Abnormal Shape PET film pad mat sheet blanket heaters
  • Abnormal Shape PET film pad mat sheet blanket heaters
Abnormal Shape PET film pad mat sheet blanket heaters Abnormal Shape PET film pad mat sheet blanket heaters Abnormal Shape PET film pad mat sheet blanket heaters Abnormal Shape PET film pad mat sheet blanket heaters

Abnormal Shape PET film pad mat sheet blanket heaters

  • Product Item:Abnormal Shape PET film pad mat sheet blanket heat
  • PET  flexible  film heaters
  • PET (Polyethylene terephthalate) flexible Pad  heaters
  •  PET Film Heating Pad Mat Strip Sheet
  • PET Belt Heaters
  • Abnormal Shape PET film pad mat sheet blanket heaters
    Inquiry Send Email PDF

    Description

    Abnormal Shape PET film pad mat sheet blanket heaters,Round Circular Shape PET film pad mat sheet blanket heaters,PET flexible film strip strap belt heaters,PET (Polyethylene terephthalate) flexible  heaters,  or  Film  heaters,  PET  flexible  film heaters,PET Pad Heaters,PET flexible pad heaters, PET flexible mat heaters,PET flexible mat heaters ,PET blanket heaters PET blanket heaters PET heating pad PET heating pad ,PET heating mat,PET heating mats,PET heating blanket, PET flexible pad heaters, PET strip flexible membrane heaters.PET strap flexible heaters,PET flexible Belt heaters,PET ultra thin strip heaters, PET heating  sheets PET heating sheets are  ideal  for  applications  with  space  and  weight  limitations,  or where  the  heater  will  be  exposed  to  vacuum,  oil,  or  chemicals.  These  thin,  flexible  heaters  are  rugged,  accurate  and  reliable.


    Benefits  of  PET  Heaters:


    • Thin,  lightweight  heaters  allow  you  to  apply  heat  where  it’s  needed,  reducing  operating  costs
    • Etched-foil  heating  technology  provides  fast  and  efficient  thermal  transfer  for  increased  heat
    •Customized  options  (i.e.  SMT  components,  flex  leads  and  connectors)  offer  turnkey  solutions  to  drastically  reduce  assembly  time  and  increase  productivity
    •Custom  profiling  gives  uniform  thermal  performance  of  the  heating  output  to  improve  processing  yields  and  productivity

    Technical  specifications:


    Temperature  range:  -50~100C,Upper  limit  with  0.003  inch  (0.08mm)  foil  backing  is  100C.
    Material:0.002  inch  PET/0.05~0.1mm
    Resistance  tolerance:  +/-10%
    Dielectric  strength:  1000VRMS
    Minimum  bend  radius:  0.03  inch  (0.8mm)
    Lead  wire:  PTFE  insulated,stranded,
    Currency  capacity  (based  on  100C  max  ambient  temperature):
    AWG  30-3.0  A;  AWG  26-5.0  A;  AWG  24-7.5  A;  AWG  20-13.5  A.
    Maximum  thickness  of  heater:  0.012  inch/0.3mm
    Standard  thickness:  0.1~0.2mm
    Configuration:  PSA  backing

    Features  of  PET  Heaters:


    • FEP  internal  adhesive  for  use  to  100°C  (392°F)
    • UL  component  recognition  available
    • Suitable  for  vacuum  environments  (NASA-RP-1061)
    • NASA  approved  materials  for  space  applications  (S-311-P-079)
    • Resistant  to  most  chemicals:  acids  and  solvents
    • Radiation  resistant  to  10^6  rads  (custom  option)
    • Very  small  sizes  available
    • Fluid  immersible  designs  available  (not  standard)

    Typical  Applications:


    • Medical  diagnostic  instruments:  Heat  sample  trays,  cuvettes,  reagent  bottles,  etc.
    • Warm  satellite  components
    • Protect  aircraft  electronic  and  mechanical  devices  against  cold  at  high  altitudes
    • Stabilize  optoelectronic  components
    • Test  or  simulate  integrated  circuits
    • Enable  cold  weather  operation  of  outdoor  electronics  such  as  card  readers  or  LCDs
    • Maintain  constant  temperature  in  analytic  test  equipment

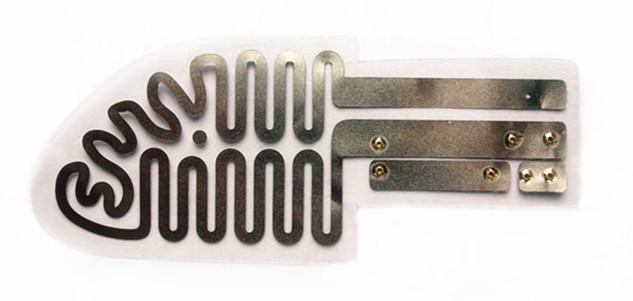

    PET Flexible Film Heaters by pictures show:

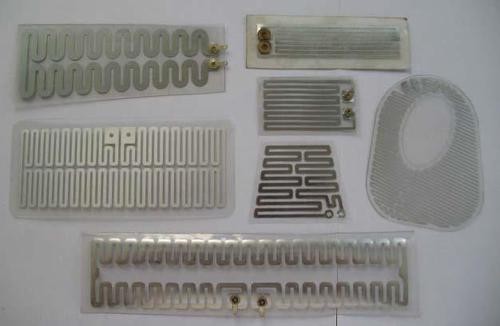

    PET flexible film strip heaters                                                                              PET film heating pad mat sheets





    PET heating film for battery warming                                                                    PET warming heating insole

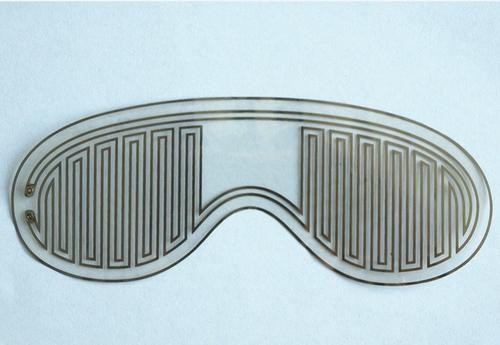

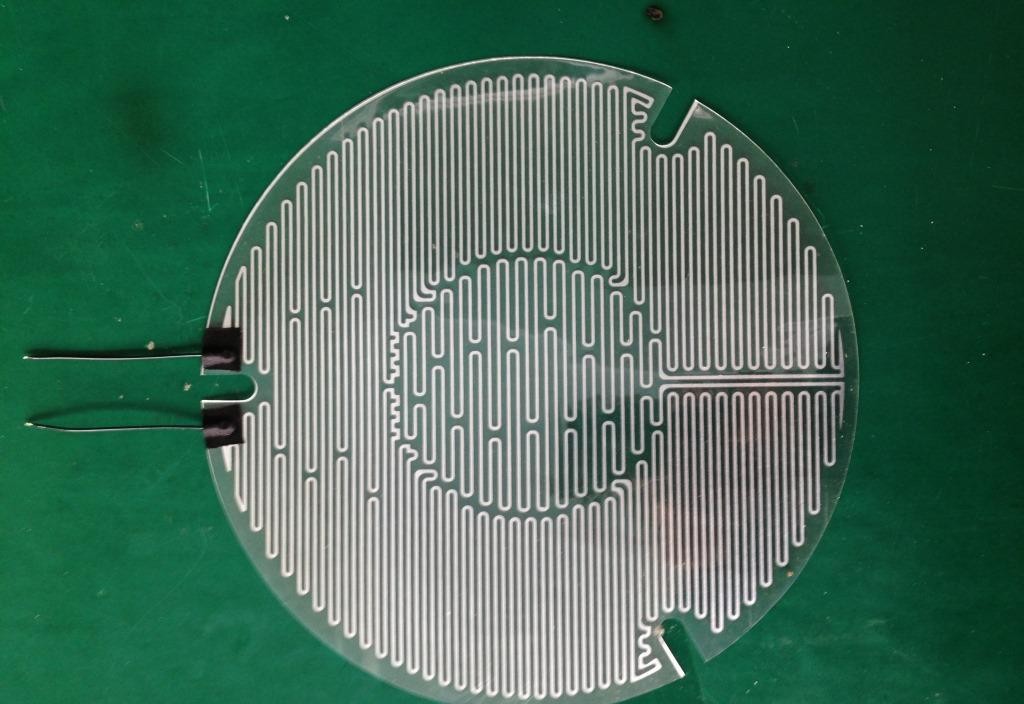

    Round Circle shape PET film Heaters                                                       Abnormal shape PET film heating pad mat sheet
