Thermal Conductive Silicone Grease Paste HWG-500

  • 产品型号:HWG-500
  • Thermally Conductive Grease Compound
  • Thermal Conductive Silicone Grease Paste
  • Silicone Interface Cooling Grease Paste
  • Silicone Interface Pad Mat Sheets Cooler
  • 点击询价 下载附件

    产品描述

    Thermally Conductive Grease Compound,CPU Chip Thermal Conductive Heat transfer Cooling Grease Paste Compound Cooler,Thermal Conductive Silicone Grease Paste,  Silicone Interface Cooling Grease Paste, Silicone Interface Pad Mat Sheets Cooler,Heat Transfer silicone Grease Paste,closeup-of-cpu-chip-white-thermal-grease,Thermally Conductive Silicone Interface Grease Paste,thermally conductive silicone gap Grease Paste,Heat Transfer Silicone Sink Grease Paste,Thermally Conductive Grease Compound,Thermal Conductive Silicone Grease Paste HWG500





    Technical Data:

    Product  Features:

    -High thermal conductivity of 5.0 w/(m·k)
    -High conformability and cost effective
    -Long reliability; Lowest thermal resistance
    -Designed for easy application

    -High thermal performance and thoroughly wets out contact surfaces to get low thermal resistance.

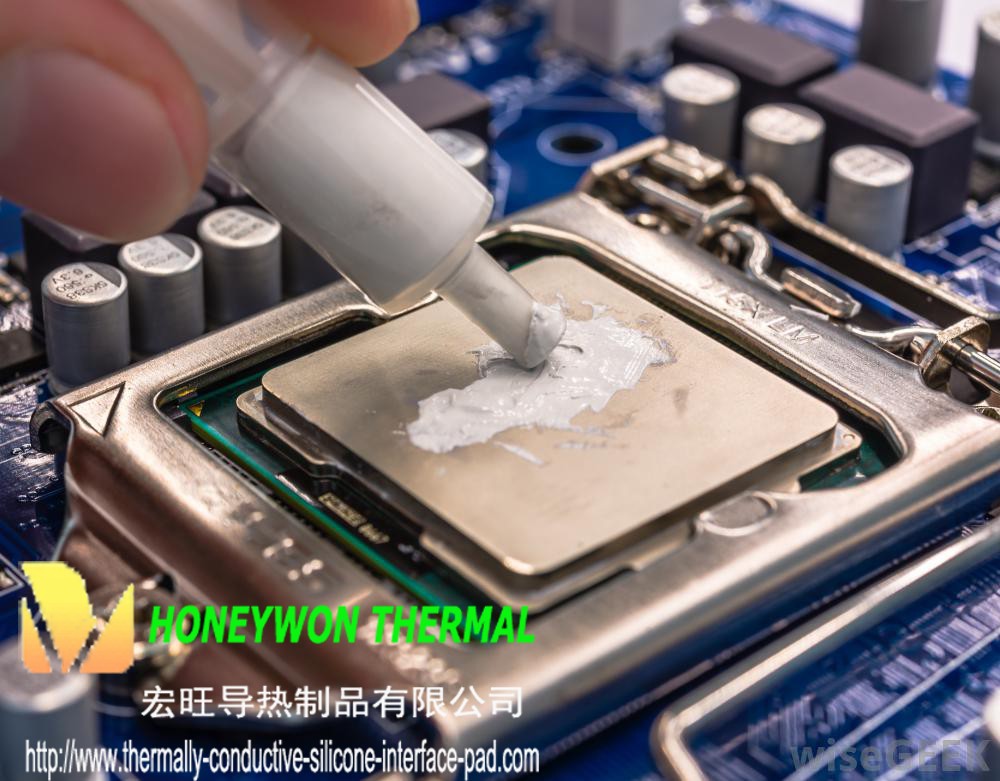

    -HWG500 is a silicone based material thermal grease for use in high performance CPUs and GPUs,

    -HWG500 is screened stenciled or dispensed and require virtually no compressive force to conform under typical assembly pressures. The excellent surface wetting results in low interface thermal resistance. Sliq3500 is available in 0.5kg,1.0kg,2.0kg and 10kg or custom packaged in syringes for automated applications


    Product  Applications:

    It is usually used as the thermal conductive medium in electronic components to reduce the heat resistant of the contact surface, consequently reduce the temperature of the electric component.

    HWG300 therml grease compound is a thermally conductive grease compound designed for:

    - Between CPU,high performance GPU,IGBT and heatsink
    - Telecom device, Military,Motol control Led lighting etc
    - Cooling Module, memory module, in all applications where lower thermal resistance is required

    - CPUs(Desktops.Notebooks.Servers)

    - Graphic chips, DSP chips

    - LED lighting

    - Flip chip microprocessors

    - IGBT module


    Product description:


    Typical Properties of HWG500

    Properties

    Units

    HWG500

    Test Method

    Color

    ---

    Gray / pasty

    Visual

    Density

    g/ml

    2.85±0.1

    ASTM D374

    Continuous Use Temp

    ℃

    -60 to 200

    EN344

    Breakdown Voltage

    Kv/mm

    5

    ASTM D149

    Volume Impedance

    ohm-cm

    1.7*1016

    ASTM D257

    Dielectric Constant

    1KHz

    0.4

    ASTM D150

    Flame Rating

    ---

    V0

    UL 94

    Thermal Conductivity

    W/m.k

    4.5

    ASTM D5470

    Thermal Resistance @50psi

    ℃-in2/W

    0.06

    ASTM D5470

    UL, RoHS

    ---

    Compliance

    ---

    REACH

    ---

    Pending

    ---

    Standard Container:

    1 KG / Container; 2KG / Container; Special spec. available




    联系我们





    相关产品

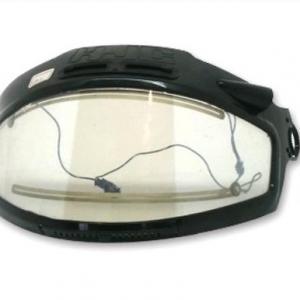

    Transparent Film Heaters Transparent Heating Membrane

    Transparent Film Heaters Transparent Heating Membrane

    Thermally Conductive Grease Compound: HWG-300

    Thermally Conductive Grease Compound: HWG-300

    silicone rubber foam roll

    silicone rubber foam roll

    Transparent Heating Film

    Transparent Heating Film

    3D printer round black silicone rubber hot bed hot plate

    3D printer round black silicone rubber hot bed hot plate

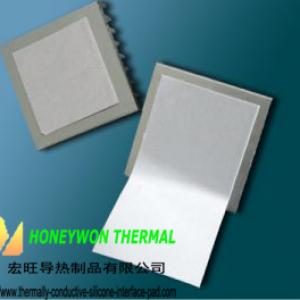

    Thermally Conductive Double Adhesive Tape: HWT-180
