Transparent Film Heaters Transparent Film Heaters Transparent Film Heaters

Transparent Film Heaters

  • 产品型号:Transparent Film Heaters
  • Transparent Film Heaters
  • Transparent Heating Film
  • Transparent ITO Heating Film Membrane
  • Transparent ITO Film Membrane Heaters
  • 点击询价 下载附件

    产品描述

    Transparent Film Heaters,Transparent Heating FilmTransparent ITO Heating Film Membrane,Transparent ITO Film Membrane Heaters,Transparent Heaters Transparent Heating Film Transparent Film Heaters Transparent Heating Membrane Transparent Membrane Heaters, Transparent ITO heaters, ITO transparent heating film , Transparent ITO film heaters,Transparent ITO heating membrane,Transparent CCTV Film Heaters,Transparent Helmet Film Heaters.



    Specification:


    1. Material: Transparent PET film or Transparent tempered glass

    2. Maximum dimension: 406*356MM

    3. The thickness of transparent PET film: 0.1mm, 0.125mm, 0.15mm,0.175mm various as per the electrical resistance of the heating element.

    The thickness of transparent tempered glass: 0.55mm, 0.75mm, 1mm,8~5mm (custom is optional)

    4. Haze: <2%, Adhesion: 100/100, roll-up: <=10mm

    5. The eveness of the surface resistance:<7%

    6. Thermal contraction: MD≤1.3,TD≤1.0

    7. Thermal stability:

    High temperature: 80C,120hr ≤1.3

    Low temperature: -40C,120hr ≤1.3

    Heat circulation: -30C—80C ≤1.3

    Heat/Humidity: 60C  90% RH,120hr ≤1.3

    9. Temperature range: 0~120C

    10. Voltage: 0~380V, Vac and Vdc are optional

    11. Square resistance: 6~150ohm

    12. Dielectricity: 2000Vac/1 minute

    13. Insulation: >100M ohm

    14. Leakage current:<0.25mA at humidity of 0~80%

    15. Life span: >10000 hours

    16. Transmissivity: 85%,

    17. Shape: Any shape is possible

    18. Application:

    A: On Helmet for construction, motocycle, Outdoor CCTV, Camera for anti-fog

    B: On outdoor LCD display,LED display,outdoor glass

    C: On outdoor meter,portable computer,DVD,optical len,glasses, LCD panel,anti-fog windowetc.

    19. Custom is welcome here with your drawing or requestion,please call for any inquiry or question: 86-15360134400 or skype: firefly197915

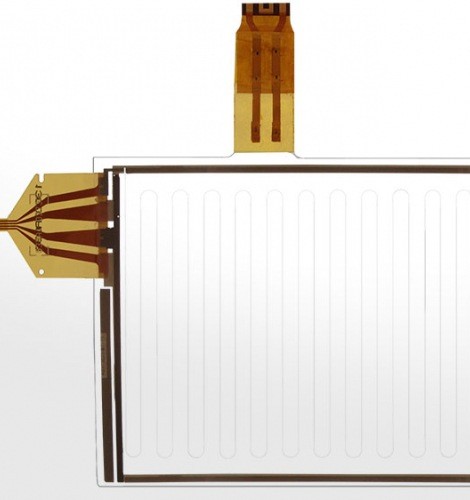

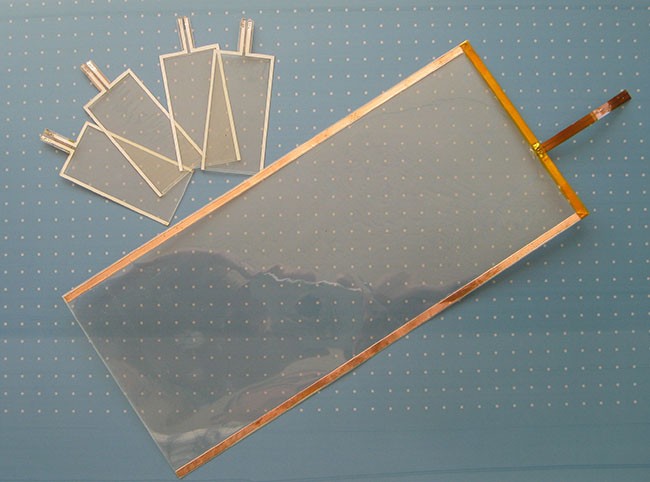

    Transparent Film Heaters by pictures show:



    Transparent Heating film Transparent film Heaters                                 Transparent Film Heaters Transparent Heating Membrane

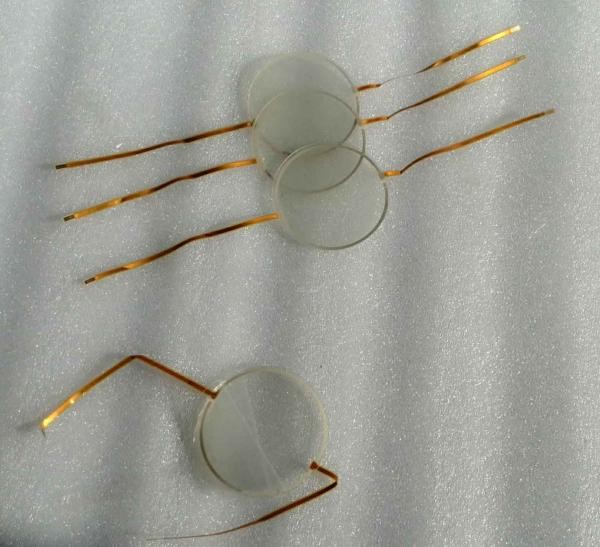

    Round Circular Transparent Heaters                                                          Transparent Helmet Film Heaters





    ITO Transparent Heaters Transparent ITO Heating Film                            Transparent Membrane Heaters
