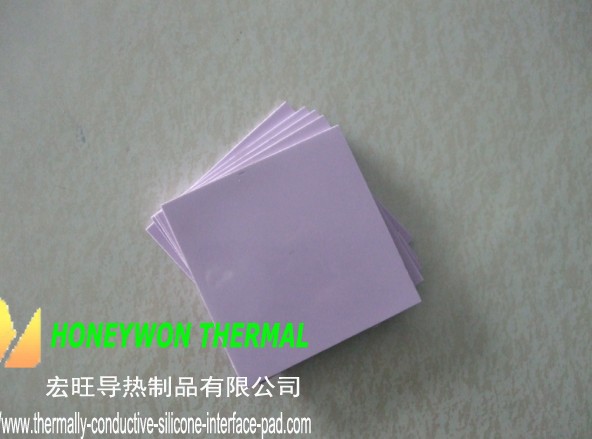

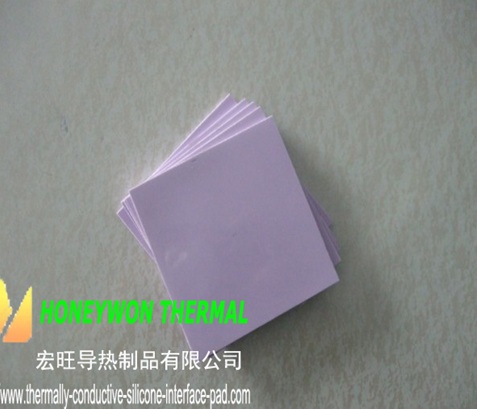

  • thermally conductive silicone gap filler HWP-180
  • thermally conductive silicone gap filler HWP-180
thermally conductive silicone gap filler HWP-180 thermally conductive silicone gap filler HWP-180

thermally conductive silicone gap filler HWP-180

  • Product Item:HWP-180
  • Thermally Conductive Silicone Interface Pad Mat Sheets
  • Silicone Interface Heat Transfer Pad Mat Sheets
  • Silicone Interface Cooling Pad Mat Sheets
  • Silicone Interface Pad Mat Sheets Cooler
  • Inquiry Send Email PDF

    Description

    Thermally Conductive Silicone Interface Pad Mat Sheets,Silicone Interface Heat Transfer Pad Mat Sheets,Silicone Interface Pad Mat Sheets Cooler,Silicone Interface Cooling Pad Mat Sheets,Cooling Silicone Interface Pad,thermally conductive interface silicone pad,thermally conductive silicone gap filler HW180




    Technical Data:


    Product  Features:

    Thermal conductivity: 1.8W/m-K

    Available in thickness from 0.020” – 0.200”
    (0.5mm- 5.08mm),
    0.010-inch (0.25mm)
    increments

    Naturally tacky for adhesion during assembly and transport


    Product  Applications:

    Telecommunication hardware

    Memory Modules

    LED solid state lighting

    Computer and peripherals

    Automotive electronics

    Mass storage devices

    Small network equipment

    Radios,audio, projecter and video component

    Cooling components to chassis

    Power electronics

    Set top boxes

    LCD and PDP flat panel TV


    Configurations Available and Options

    Sheet form (18”X18”,18”X9”) and die-cut parts

    A1 indicates only one side tacky


    Product description:

    Typical Properties of HWP-180

    Properties

    Units

    HWP180

    Test Method

    Construction & Composition

    ---

    Silicone & Ceramic filled

    ---

    Color

    ---

    Light Violet

    Visual

    Thickness Range

    mm

    0.5~5.0mm

    ASTM D374

    Hardness

    Shore 00

    50

    ASTM D2240

    Density

    g/cc

    1.93

    ASTM D792

    Continuous Use Temp

    ℃

    -60 to 160

    EN344

    Breakdown Voltage

    Vac/mm

    ≥300

    ASTM D149

    Volume Impedance

    ohm-cm

    6*1016

    ASTM D257

    Dielectric Constant

    1MHz

    5.5

    ASTM D150

    Flame Rating

    ----

    V-0

    UL 94

    Thermal Conductivity

    W/m.k

    1.8

    ASTM D5470

    UL, RoHS, REACH

    ----

    Compliance

    ----

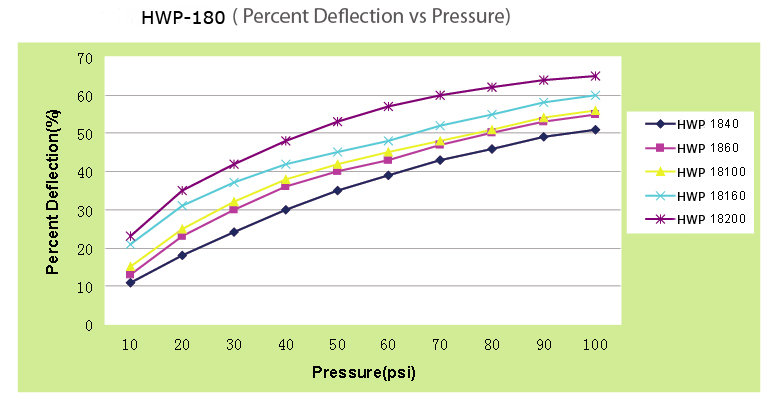

    Percent Deflection Vs Pressure

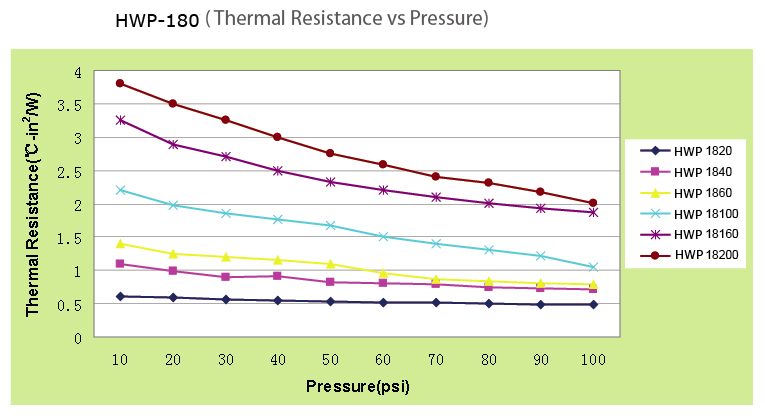

    Thermal Resistance Vs Pressure
