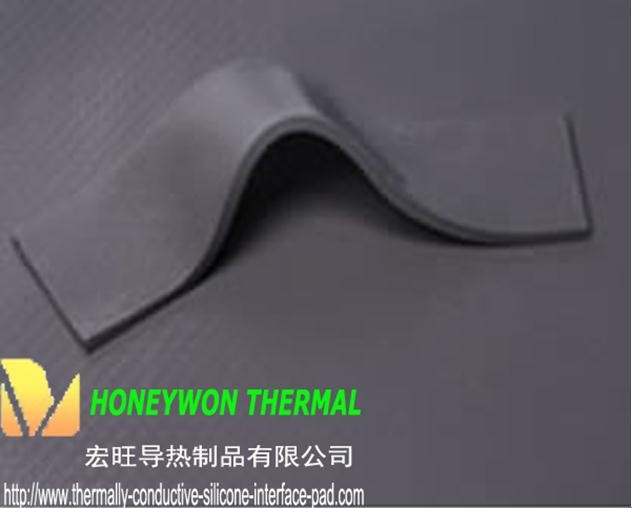

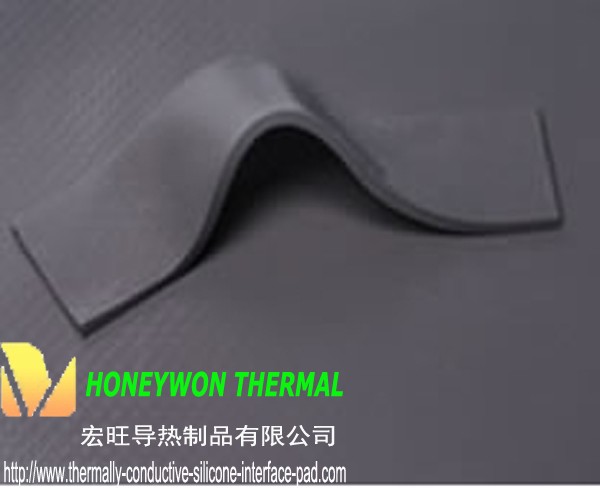

thermally conductive interface silicone pad HWP-150

  • Product Item:HWP-150
  • Thermally Conductive Silicone Interface Pad Mat Sheets
  • Silicone Interface Heat Transfer Pad Mat Sheets
  • Silicone Interface Cooling Pad Mat Sheets
  • Silicone Interface Pad Mat Sheets Cooler
  • Inquiry Send Email PDF

    Description

    Thermally Conductive Silicone Interface Pad Mat Sheets,Silicone Interface Heat Transfer Pad Mat Sheets,Silicone Interface Pad Mat Sheets Cooler,Silicone Interface Cooling Pad Mat Sheets,Cooling Silicone Interface Pad,thermally conductive interface silicone pad HWP-150





    Technical Data:


    thermally conductive interface silicone pad HWP-150


    Product  Features:

    -Good thermal conductivity
    -High conformability and cost effective
    -Shock absorbing and naturally tacky
    -Electrically insulating
    -it is easy to fill in air gaps between PC board and heat sinks or a metal chassis


    Product  Applications:


    - Between electronic components such as Semiconductor, IC, CPU.MOS and heatsink.
    - Led Lighting, LCD TV, Telecom device, wireless Hub,NB, PC, power supply etc
    - Cooling Module, Thermal module, in all applications where a metal housing is used as heatsink.


    Product description:

    Typical Properties of HWP150

    Properties

    Units

    HWP150

    Test Method

    Construction & Composition

    ---

    Silicone & Ceramic filled

    ---

    Color

    ---

    Dark Gray

    Visual

    Thickness Range

    mm

    0.5~12.0

    ---

    Hardness

    Shore C

    25

    ASTM D2240

    Density

    g/cc

    2.5

    ASTM D792

    Tensile Strength

    KN/m

    0.5

    ASTM D412

    Elongation

    %

    70%

    ASTM D412

    Continuous Use Temp

    ℃

    -40 to 150

    EN344

    Breakdown Voltage

    Kv/mm

    ≥5.0

    ASTM D149

    Volume Impedance

    ohm-cm

    8.0*1015

    ASTM D257

    Dielectric Constant

    1MHz

    5.75

    ASTM D150

    Weight Daminify

    ---

    ≤0.3﹪

    @150℃ 240H

    Flame Rating

    ---

    V-0

    UL 94

    Thermal Conductivity

    W/m.k

    1.5

    ASTM D5470

    UL, RoHS, REACH

    ---

    Compliance

    ---

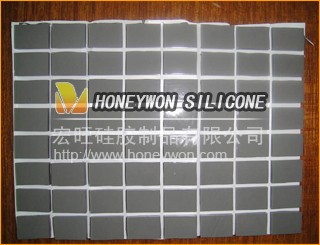

    Sheet sizes:

    Standard sheet size:200*400mm and 330*330mm;Custom Die-cut parts available;Available with or without PSA

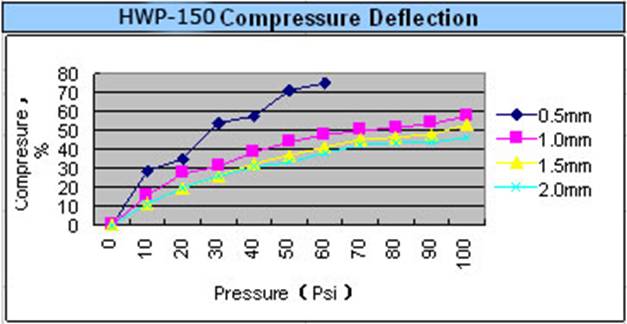

    Percent Deflection Vs Pressure
