Description
Technical Data:

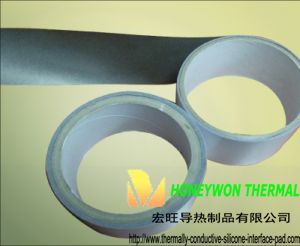

Thermally Conductive Double Adhesive Tape: HWT-100
Product Features:
Thermal conductivity: 1.0W/m-K
Available in thickness 0.005inch(0.127mm), 0.006inch(0.152mm), 0.008inch(0.20mm),
0.01inch(0.254mm), 0.015inch(0.381mm)”
Excellent adhesive property and thermal stability
Highly compliant and good wetting
HWT100 is a thermally conductive adhesive tape to provide a preferential heat transfer path between heat components and cooling devices; this tape is tacky pressure sensitive adhesive loaded with thermally conductive ceramic fillers that offer good adhesive and thermal performance.
Product Applications:
LED lighting and LED TV
Heat sink thermal model
Memory modules
High power IC
Control modules
VGA cards
Telecommunication hardware
.
Configurations Available and Options:
Roll form (1250x50M) and custom die-cut parts
Product description:
|
Typical Properties of HWT100 |
||||
|
Properties |
Imperial Value |
Metric Value |
Test Method |
|
|
Reinforcement Carrier |
Fiberglass |
Fiberglass |
--- |
|
|
Color |
White |
White |
Visual |
|
|
Thickness Range (inch/mm) |
0.005”~0.015” |
0.125~0.381 |
ASTM D374 |
|
|
Outgassing TML (Post Cured) |
<1.0% |
<1.0% |
ASTM E595 |
|
|
Continuous Use Temp (F)/(C) |
-22 ~ 302F |
-30 ~150C |
|
|
|
Dielectric Breakdown Voltage 50mm probe |
80 VAC/mil |
80 VAC/mil |
ASTM D149 |
|
|
UL Flammability Rating |
V0 |
V0 |
UL94 |
|
|
Rohs Compliant |
Yes |
Yes |
SGS |
|
|
Shelf life, year from date of production |
1 |
1 |
|
|
|
Thermal Conductivity (w/m-k) |
1.0 |
1.0 |
ASTM D5470 |
|
|
Peeling Adhesion |
25C |
80C |
150C |
PSCT-1 |
|
1750g/2.5cm |
450g/2.5mm |
230g/2.5mm |
||
|
Static Shear Test of Holding |
25C |
80C |
150C |
PSCT-7 |
|
1250g/2.5cm |
1100g/2.5cm |
1000g/2.5cm |
||
